THe older Nikkor lenses have this little piece of metal plate with a slot in it sitting just above the apeture ring, please remind me ," What was that for "? thanks Bob W
WHAT WAS IT FOR ?
- Thread starter nikonian bob
- Start date
On some of the older cameras: Nikkormat, F, F2 etc. there was a pin that stuck out from the camera below the pentaprism that locked into the slot in the metal plate 'thingy' on the lens - this was how the lens aperture was communicated to the camera body - we're talking pre-1970's here... Since Nikon's philosophy was that all lenses would always fit all cameras, they kept this feature on all M/F lenses for many years...
OP
- Messages
- 66
- Name
- robert
- Edit My Images
- Yes
Thanks all, now I can spread the word and make out like I knew that.
photon
Junior Member
- Messages
- 5,123
- Edit My Images
- Yes
Loads of info here: http://photo.net/nikon-camera-forum/00ELDr
Accompanying photo: http://static.photo.net/attachments/bboard/00E/00ELaD-26732584.jpg
Accompanying photo: http://static.photo.net/attachments/bboard/00E/00ELaD-26732584.jpg
The silver 'rabbit'-ears thing isn't part of the AI linkage - it's pre-AI - the AI tab is on the aperture ring and interfaced with a rotating ring around the body's lens-mount.
Nikkormat FTN
http://www.cameraquest.com/nkmatftn.htm

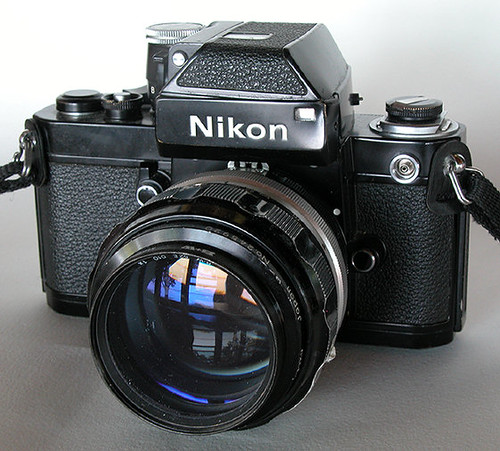

Nikon F2 - the rabbit's ears are linked to a metal pin under the Photomic Pentaprism head just out of sight... lenses such as this are known as Non-AI since the introduction of AI lenses in the late '70's...
Nikkormat FTN
http://www.cameraquest.com/nkmatftn.htm
Nikon F2 - the rabbit's ears are linked to a metal pin under the Photomic Pentaprism head just out of sight... lenses such as this are known as Non-AI since the introduction of AI lenses in the late '70's...
